Product Description

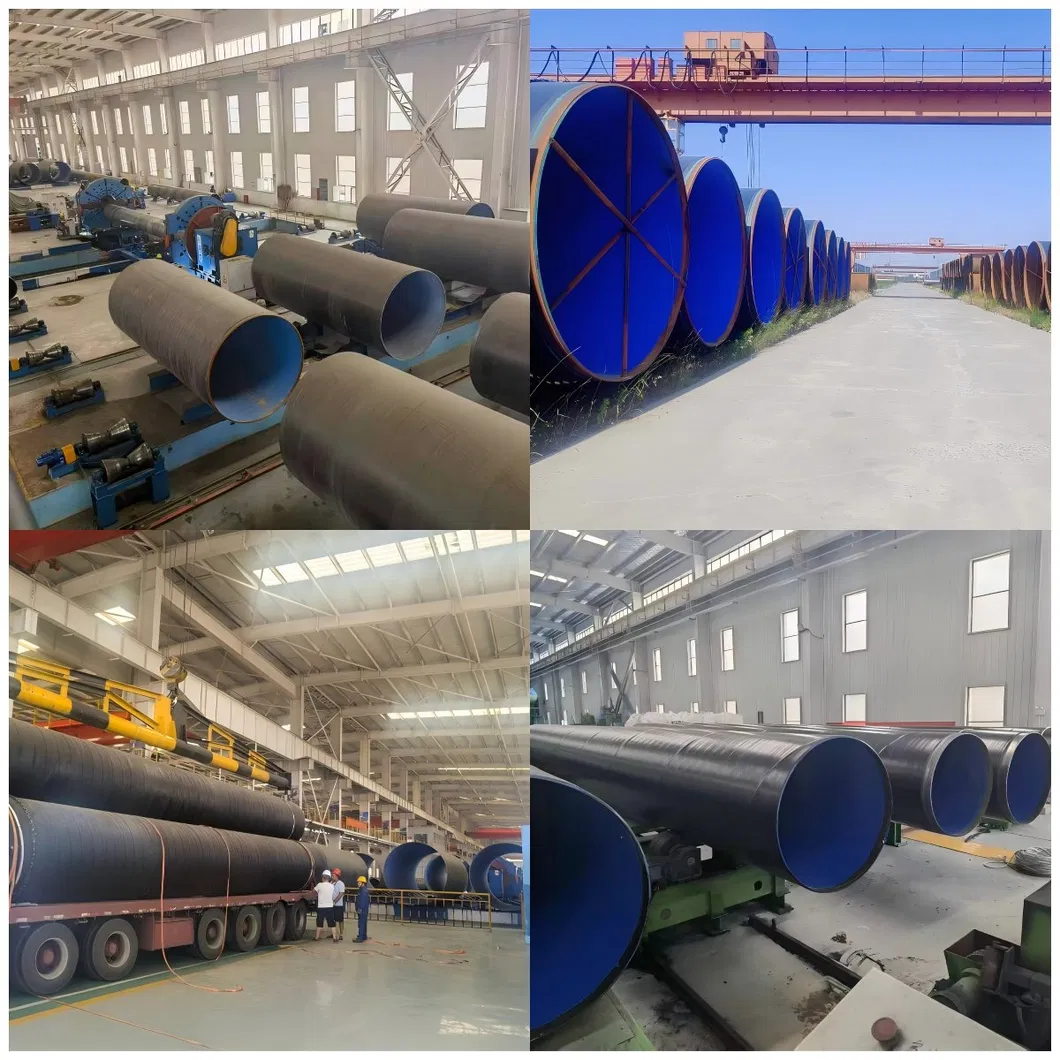

The 3PE anti-corrosion structure consists of three layers: the first layer is fusion bonded epoxy powder (FBE), the second layer is adhesive (AD), and the third layer is polyethylene (PE). These three materials are integrally bonded to form a strong and reliable anti-corrosion coating. This composite structure effectively combines the chemical resistance of epoxy, the bonding properties of adhesive, and the mechanical protection of polyethylene.
The 3PE outer coating for steel pipes offers high mechanical strength, excellent electrical insulation performance, and long-lasting corrosion protection. The production line features a high degree of automation, stable process parameters, and environmental friendliness. In recent years, 3PE coating technology has been widely applied in various pipeline corrosion protection projects around the world.
Our Advantages
√ Adopting advanced technology to ensure cutting-edge solutions.
√ Ensuring stable operation of our systems for reliable performance.
√ Providing a high degree of automation to save on labor costs and enhance efficiency.
√ Offering top-notch anti-corrosion quality that meets international standards.
√ Supplying full and comprehensive production solutions, including design, installation, commissioning, and training.
√ Boasting a team of 9 professional senior engineers who bring expertise and innovation to our projects.
√ Operating a high-end plastic machinery equipment expert workstation in China for cutting-edge developments.
Product Parameters
| Steel pipe outside shot blasting derusting operation line |
| No. | Description | Qty. | Remarks |
| 1 | Transmission line | 1set |
|
| 2 | Shot blasting derusting line | 1set |
|
| 3 | Cyclone dust collector | 1set |
|
| 4 | Pulse filter cartridge dust collector | 1set |
|
| 5 | Centrifugal wind blower | 1set |
|
| 6 | Derusting equipment electrical control system | 1set |
|
| Steel pipe outside spiral 3PE production line |
| No. | Description | Qty. |
|
| 1 | Coating transmit system | 1set |
|
| 2 | Intermediate frequency heating system | 1set |
|
| 3 | Epoxy spraying system | 1set |
|
| 4 | Automatic feeding dryer | 2sets |
|
| 5 | SJ-65/30 single screw high efficiency extruder | 1set |
|
| 6 | SJ-120/30 extruder | 1set |
|
| 7 | Hot melt adhesive extrusion die head | 1set |
|
| 8 | PE sheet extrusion die head | 1set |
|
| 9 | Hot melt adhesive/PE sheet press device | 1set |
|
| 10 | Stainless steel spray powder chamber | 1set |
|
| 11 | Cooling water spray system | 1set |
|
Platform system |
| No. | Description | Qty. |
|
| 1 | Steel pipe up load platform | 1set |
|
| 2 | Derusting transition platform | 1set |
|
| 3 | Finished pipe storage system | 1set |
|
| 4 | Hydraulic system | 3sets |
|
| Grooving system |
| No. | Description | Qty. |
|
| 1 | PE grooving device | 2sets |
|
| 2 | Hydraulic elevating pipe turner | 2sets |
|
| 3 | Operating cabinet | 1set |
|
Technological processes:
1.Up load pipe-----2.External derusting------3.Inner blowing cleaning-----4.Epoxy coating----5.Put adhesive on epoxy layer-----6.PE jacket coating------7.Water cooling ------8.Coating layer detection-----9.Pipe edge treatment---- 10.Finished pipe convey-----11.Download pipe
FAQ
Q: What is the brand name of this 3LPE Coating Pipe Production Line?
A: The brand name of this product is Huashida.
Q: What is the model number of this 3LPE Coating Pipe Production Line?
A: The model number of this product is 50-4200mm.
Q: Where is this 3LPE Coating Pipe Production Line manufactured?
A: This product is manufactured in Qingdao, China.
Q: What certifications does this 3LPE Coating Pipe Production Line have?
A: This product is certified with ISO, CE, and RoHS certifications.
Q: What is the minimum order quantity for this 3LPE Coating Pipe Production Line?
A: The minimum order quantity for this product is 1 set.

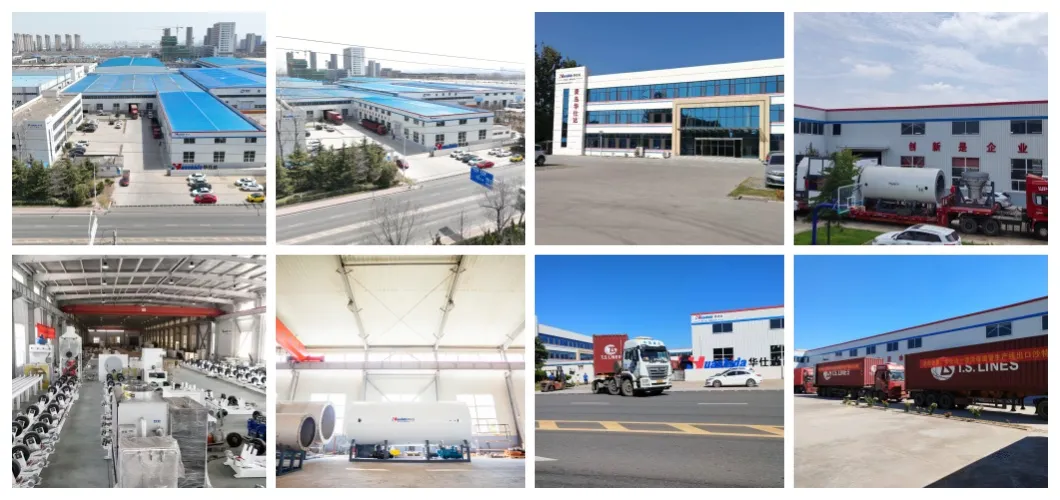

Company Profile
Qingdao Huashida is one of the largest professional manufacturers and exporters of anti-corrosion and insulation equipment in China. With over 20 years of experience and strong R&D capabilities, we offer both standardized and customized solutions for global clients.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
